We supply 2 horse, 3 horse ,4 horse straight load and angle load float trailers.

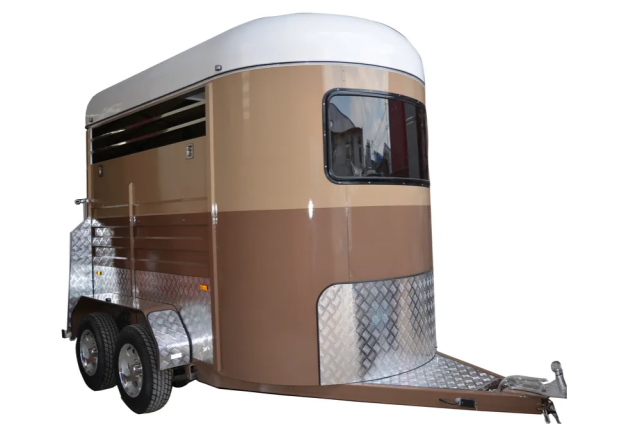

Below is specifications for our 2 horse straight load float

Overall Dimension	3925*2270*2590mm
Dimension of Body	3075*1750*2230mm
Maximum Internal Dimension of Body	3050*1700*2155mm
Chassis	hot galvanized RHS (3.5mm-4.0mm)
Frame	hot galvanized RHS(2.5mm)
Body	Galvanized iron sheet(1.0mm-1.5mm)
Roof	glass fibre reinforced plastic 3075*1750mm
Wheel/Tyre	alloy wheels 185R14C
Spare Wheel	1,mounted outside
Suspension	5 leaf plate spring suspension(400KG/leaf),Independent
Axles	trailer axles
Brake System	one axle electric brake with break-away systems
Front Window	1220*610 polycarbonate wind shield
Side Window	two rectangle(diamond) sliding windows,one each side
Side Door	one
Turn Light	two each side(except tail lights)
Tail Lights	one set
Horse Divider	soft cushion
Decorative Front panel	aluminium checkered plate 1.2mm
Mudguard	partialy decorate with aluminium checkered plate
Pedal Plate	decorate with aluminium checkered plate
External Tie Hooks	four, two each side
Jockey Wheel	swing-up jockey wheel
A kitchen	none
Roof Vents	two vents
Saddle Stents	none
Toolbox	none(optional)
Hay Rack	yes, horse bay

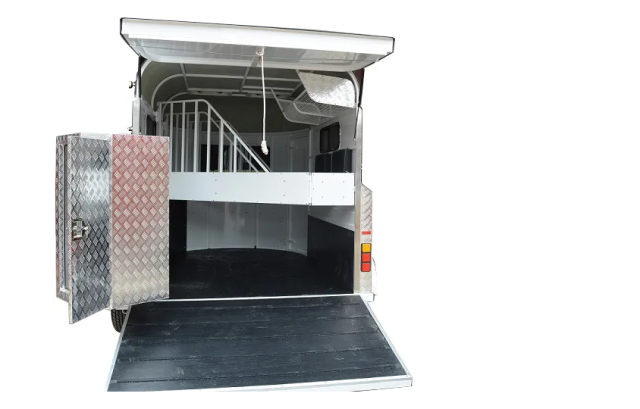

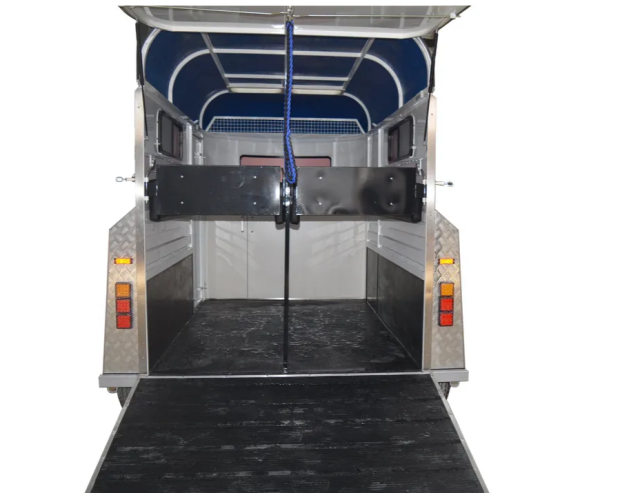

Tailgate(upper)	2020*1065mm, pneumatic spring-loaded
Tailgate/Ramp Door	2020*1210mm, pneumatic spring-loaded,10mm rubber cushion
Horse Area	10mm rubber floor
Side Area inner	6mm rubber cushion
Taillight Mounting Plate	aluminium checkered plate

Company Introduction:

Our Advantages:

Professional Engineer Team,Skilled Workers ,High quality ,Top service!
1.The rub matting is a whole piece with nylon wire;
2.All the rivets, nuts and bolts are waterproof stainless steel.
3.The board is made from African okoume hardwood ;
4.Our suspension adopts roll rocker tandem leaf spring;
5.All the parts like Tied rings, locks, case hooks are all stainless steel;
6.All the axles with electrical brake with break - away system;
7.Removable divider, fully padded;
8.The wires are ADR standard;
In order to improve our products and service, and be responsible for the interests of our overseas customers, we only manufacture high quality products.

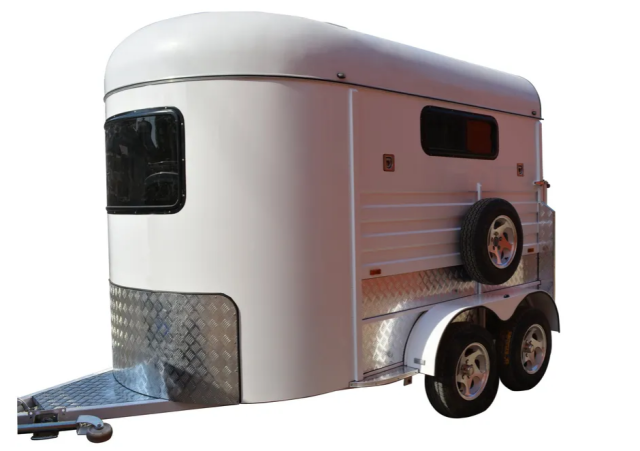

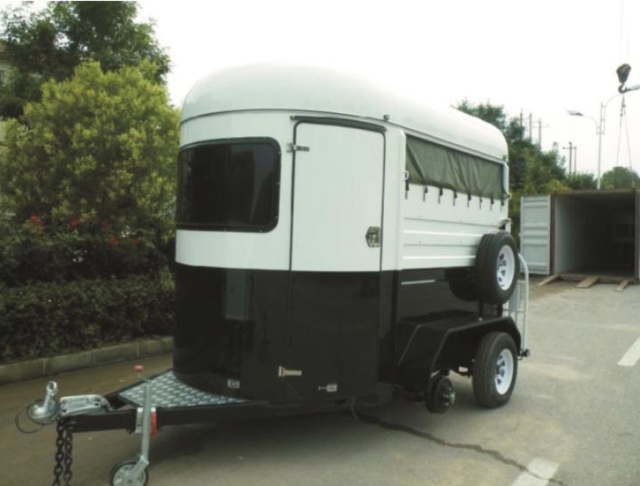

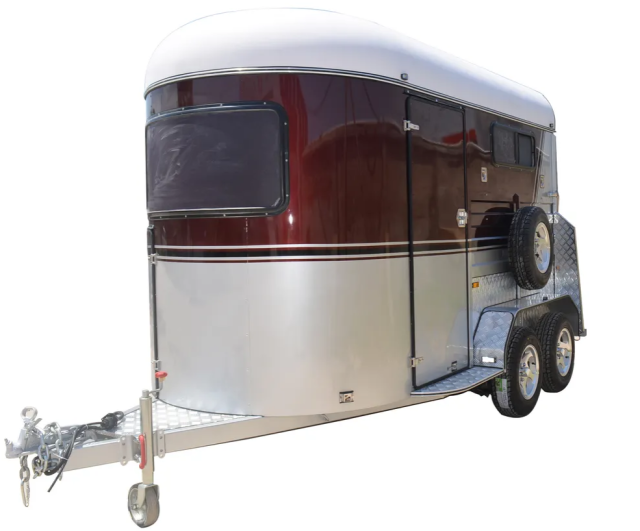

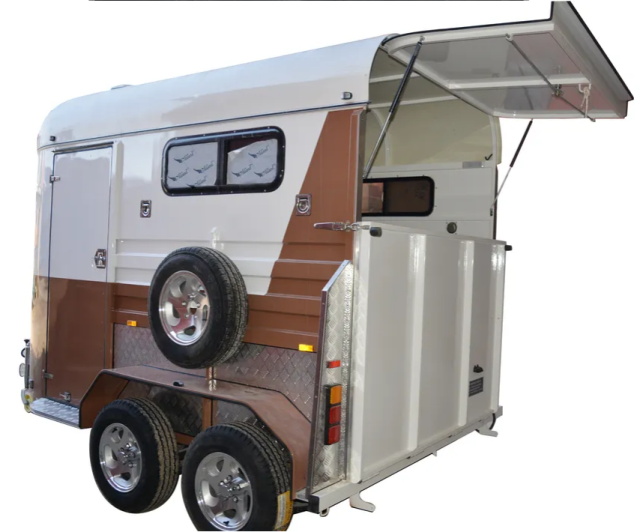

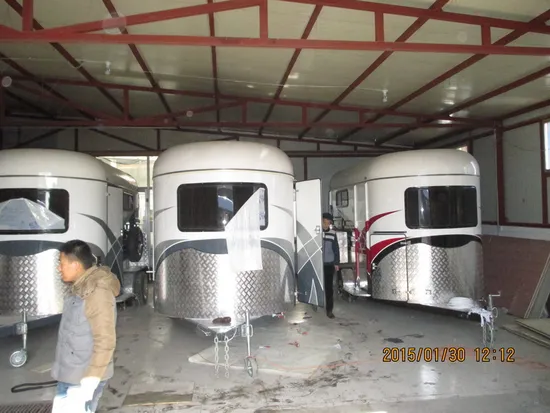

Some styles as below:

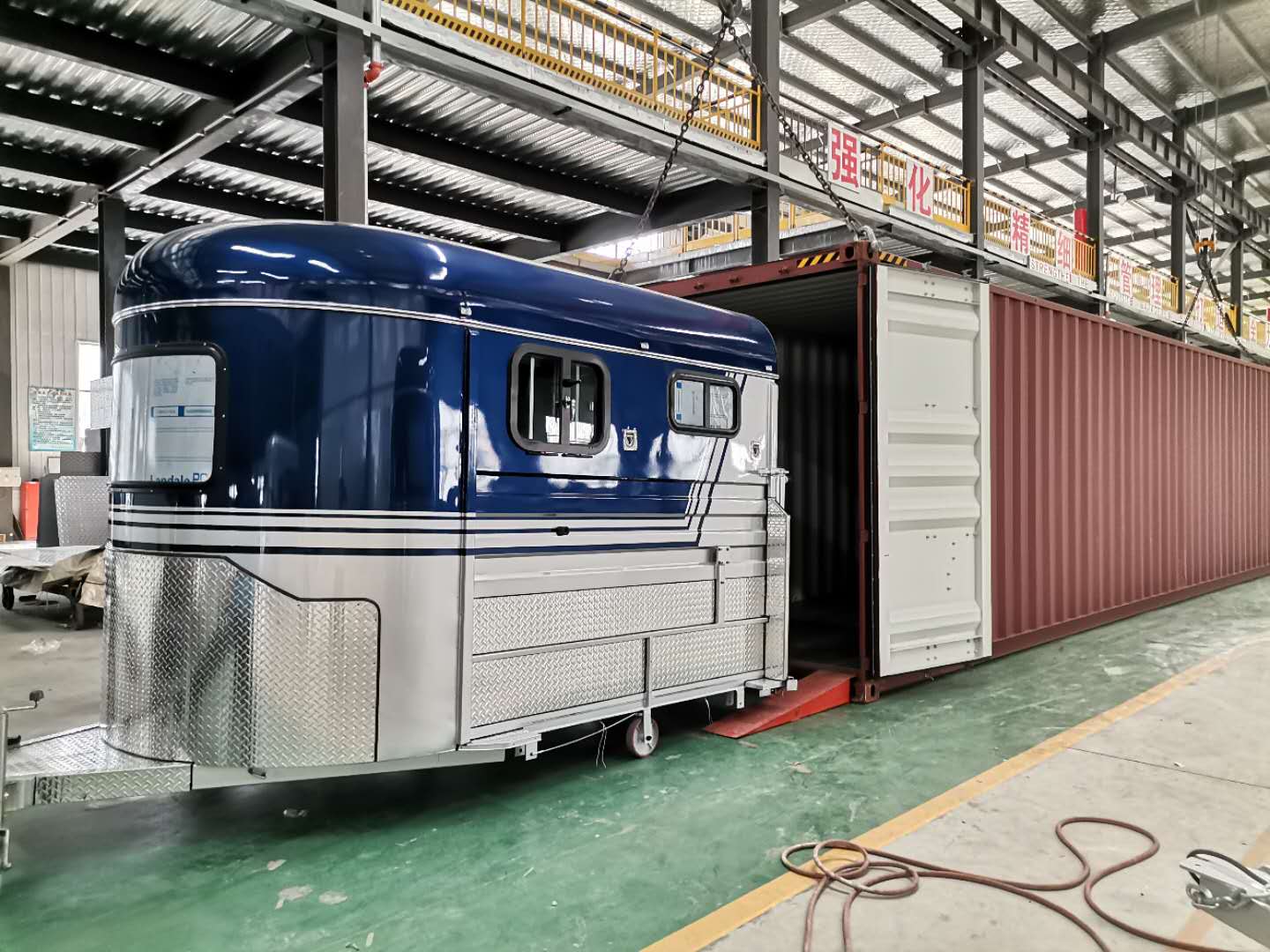

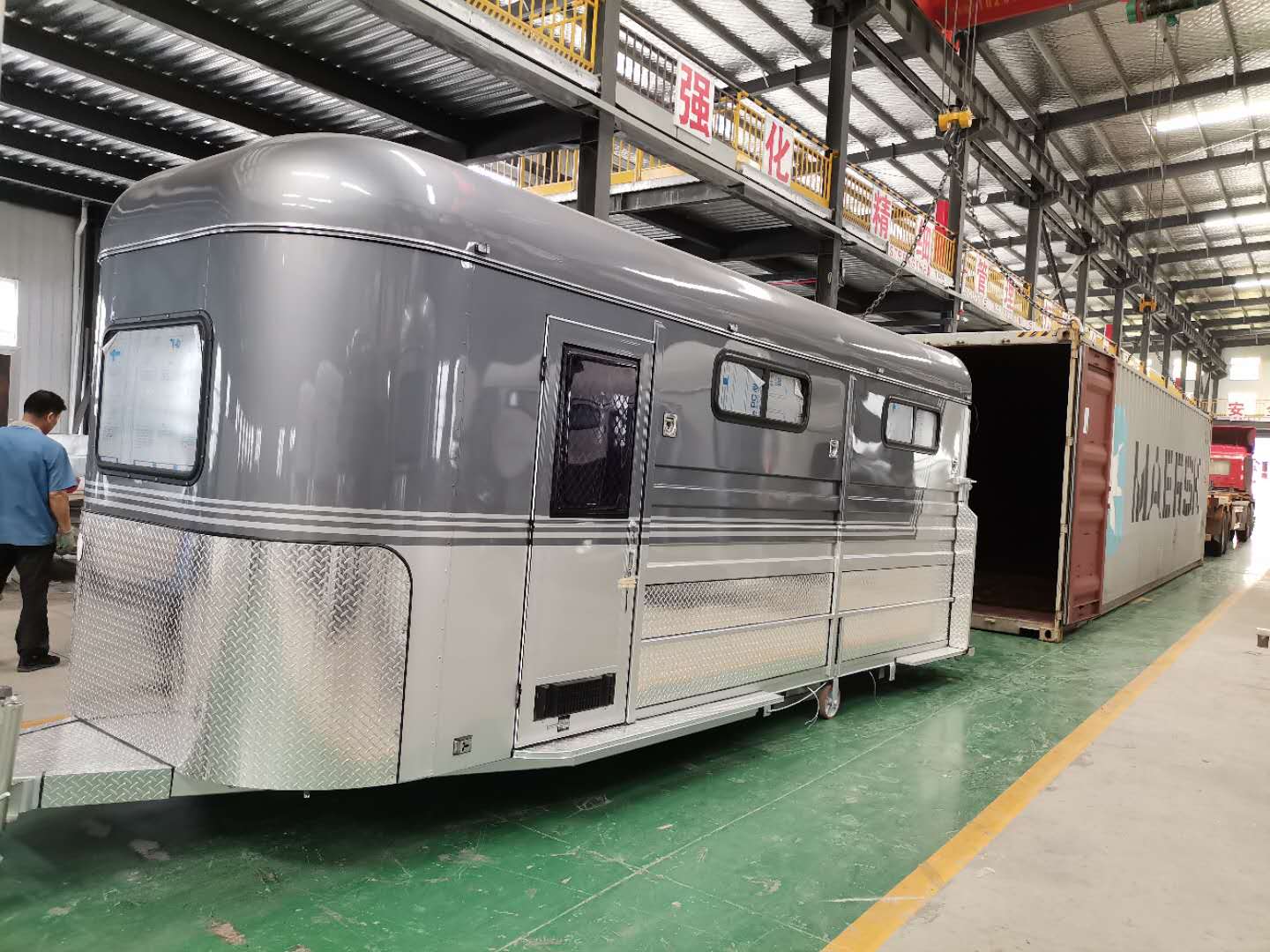

Loading:


FAQ:
Q1. Why You can choose us freely?
Q1: Factory---we have our own factories, so we can supply reasonable price and strictly control the quality for you.
Q1:Professional---We have specialized in the production and sales of the horse trailers for 15 years.
Q1:Our principle:  Customers'satisfaction ,High Quality,Top service.
Q2. Can you accept OEM or ODM ?
Q2:Yes,sure

Q3.What is the payment term?
Q3: T/T, 30% deposit, and balance before loading after your final confirmation about the production.

Q4.What about the lead time ?
Q4:Sample & Bulk production needs 20-46 days depending on different products.
